| NETWORK | |
| Network Protocols | IPv4/v6, RTSP/RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS,
FTP, DDNS, PPP, OE, SMTP, SIP |
| Alarm Trigger | Temperature Alarm, Motion Detection,
Network Disconnect, Disk Alarm, I/O Alarm |
| RRSP Video | Standard RFC2326, Support Quick Time / VLC Player. |
| Security | User Security Authentication, Reset, Hardware Watchdog |
| Web Language | English, Chinese |
| System Compatibility | ONVIF |
| INTERFACE | |
| Ethernet | 1 Ethernet (10/100 Base) RJ-45 Connector |
| Audio I/O | 1 ch Audio in, 1 ch Audio out |
| Alarm I/O | 1 ch Alarm in, 1 ch Alarm out |
| RS485 | Yes |
| BNC Output | Yes |
| Reset Button | Yes |
| Edge Storage | Micro SD/SDHC slot, Max 32GB |
| GENERAL | |
| Power Supply | DC9-DC36V, AC24V optional |
| Power consumption | 50W max. |
| Operating Temperature | -20°C ~ +55°C (-4°F~+131°F) |
| Operating Humidity | 0 % – 90 % RH |
| Ingress Protection | IP66 |
| Approvals | CE / FCC |

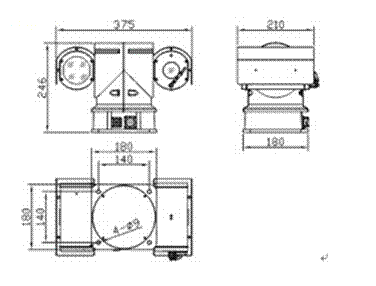

| Product Dimensions | 210 X 246 X 375mm (8.26 x 9.68 x 14.76 in.) |
| Product Weight | 10 Kg (22 Ibs) |

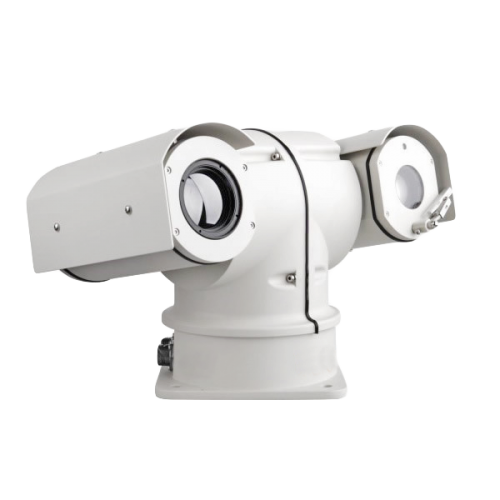

- Uncooled IRFPA Microbolometer
- Temperature detection
- Resolution 420 x 315
- Optical Resolution 1080P/30fps
- 25/35/50 mm lens optional
- Optical Zoom 22X
- Infrared detection wavelength 8-14 um
- Color mode: Black – Heat/White – Heat/Rainbow/Iron – Red
| Weight | 22.0000 |
| VPIP-THERMAL-2522 25mm Lens | 15500.00 |
| VPIP-THERMAL-3522 35mm Lens | 18000.00 |
| VPIP-THERMAL-5022 50mm Lens | 20500.00 |
| Detector Type | Long-Life, Uncooled IRFPA Microbolometer |
| Pixel | Pitch:25um |
| IP Rating | IP-66 |
| Thermal Sensitivity | 50mK |
| Focus Mode | Manual |
| Aperture | No |
| Lens | 25/35/50 mm lens optional |
| Pan/Tilt Speed | n/a |
| Operating Temperature | -20°C ~ +55°C (-4°F~+131°F) |
| Dimensions | 210 x 246 x 375 (mm) 8.26 x 9.68 x 14.76 (in) |
| Mount | No |
| Datasheets | Yes |
| Videos | No |
