| Specifications |

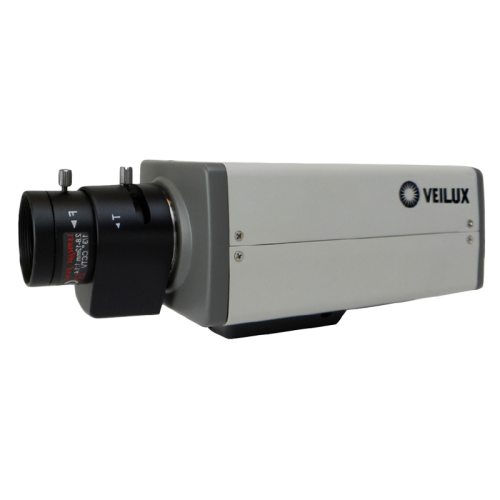

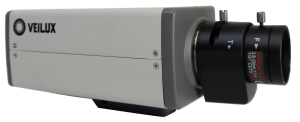

VSSC-68CDNR-90 |
| Sensor |
1/3” Sony 960H EXview HAD CCD II |
| Signal System |
NTSC / PAL |
| Min. Illumination |
Color: 0.03Lux@F1.2,
B/W: 0.01Lux@F1.2, 0.005Lux@F1.2 (with ICR),
Sense-up: 0.0001Lux@F1.2 |
| Video Output Level |
1.0Vp-p/75 Ω |
| Horizontal Resolution |
Color: 680TVL B/W: 700 TVL |
| Lens Mount |
CS / C mount (With Adaptor Ring) |
| Wide Dynamic Range |
510x Normal Camera (54dB) |
| S/N |
More than 55dB(AGC off) |
| Gamma Correction |
0.45 |
| Sync System |
Internal / Line Lock (AC Version Only) |
| Digital Day & Night Mode |
Color / B&W / Auto / Ext |
| Electronic Shutter |
Auto Shutter: (20 Steps) Programmable Manual Shutter: (20 Steps) |
| Auto Gain Control |
0~200 Levels (Adjustable Level Settings) |
| White Balance |
ATW / AWB / PUSH LOCK / MANUAL / 3200K / 6300K /ANTI CR |
| Wide Dynamic Range / Back Light Compensation / Fog Reduction |
Wide Dynamic Range / Fog Reduction / Back Light Compensation / OFF |
| High Light Compensation |
ON / OFF / AUTO |
| Flickerless |
ON / OFF / AUTO |
| Digital Noise Reduction |
3D / 2D |
| Sense Up |
AUTO (Limit x2~x512) / OFF |
| Language |
English / Traditional Chinese / Simplified Chinese |
| Motion Detection |
ON / OFF(24×16 Zones, Alarm); ON / OFF (15 Zones Programmable) |
| Camera Control Int. |
RS485 Interface OSD Control by Pelco-D, Pelco-P |
| ENVIROMENTAL |
|
| Temperature |
Operating: 14°F to 122°F (-10°c to 50°C) Storage: -4°F to 140°F (-20°C to 60°C) |
| Operating Humidty |
10% -85% RH |
| ELECTRICAL |
|
| Power Supply |
12VDC / 24VDC (10.8~39VDC/24VAC) 2W |
| PHYSICAL |
|
| Dimensions |
67(W)x56(H)x120(L)mm |
| Unit Weight |
0.75 lb (0.340 kg) |
|
|
Key Features
- 1/3” Hyper Wide Dynamic Car License Plate Camera (Effio WDR)
- Color 680 TV Lines
- Powerful 510x WDR (54dB)
- Capable of Capturing Car License Plate Numbers at High Speed
Day: up to 200km/hr (125mph) Night: up to 150km/hr (90mph) with IR LEDs
- Shutter Modes (Auto, Manual)
- Fog Reduction
- High Light Compensation (HLC)
- 2D/3D Noise Reduction; Sense up (512x)
- Digital Image Stabilizer (DIS); E-zoom Functions (1~256x)
- Advanced Motion Detection Function
- Quadrangle Mosaic Privacy Mask
| Weight |
0.7500 |
| Image Sensor |
1/3” Sony 960H EXview HAD CCD II |
| Resolution |
Color: 680TVL; B/W: 700 TVL |
| Illumination |
Min: Color: 0.03Lux@F1.2; B/W: 0.01Lux@F1.2, 0.005Lux@F1.2 (with ICR); Sense-up: 0.0001Lux@F1.2 |
| Day & Night |
Color / B&W / Auto / Ext |
| Language |
English / Traditional Chinese / Simplified Chinese |
| Operating Temperature |
14°F to 122°F |
| Dimensions |
67 x120 x 56 (W x L x H) (mm) |
