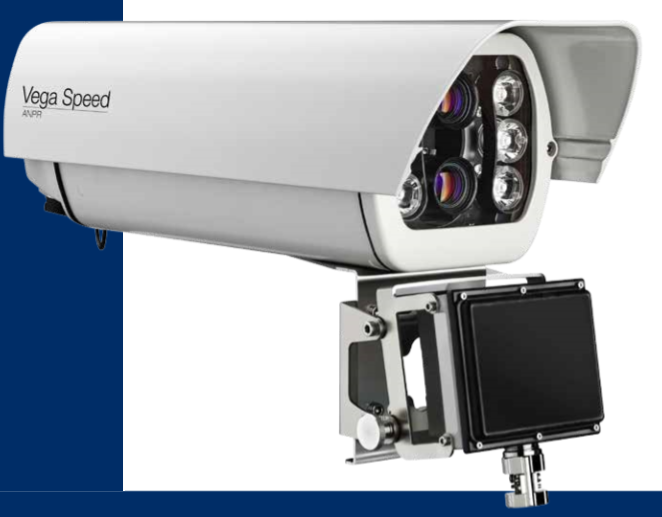

The new Vega Speed is an advanced system for speed violations detection. The application fields are Instant Speed Enforcement and Average Speed Enforcement. Vega Speed is the new user-friendly tool for fighting speeders. Thanks to its light and compact format, it can be easily installed, also in harsh conditions; it doesn’t require heating or cooling. The on board plate recognition makes Officer’s job easier and faster.
Vega Speed | |
Licence Plate Recognition | |
OCR | ANPR engine on board |
Grabbing | Up to 75 fps |
Configuration | |
Web Server | Installation and configuration by Web Server on board |
TCP/IP Server | Configuration and monitoring through TCP/IP protocol |
Date and Hour | Synchronization via SNTP protocol |
Software Update | Upgrading via Web Interface and SDK |
Data Transmission | |
FTP |
FTP Client to FTP Server mode for remote data transmission; two IP address management |
TCP/IP | Tattile TCP/IP open protocol; two IP address management |
Serial Port | RS485 |
Operating Mode | |
Triggered by Radar | Image capture and processing triggered by Radar detection |
Vega Speed | |
System | |
ANPR camera | 2560 x 2048 Monochrome CMOS sensor |
Context camera | 2560 x 2048 Color CMOS sensor |
Illuminator | 6 high power LEDs, InfraRed @ 850 nm |
Lenses | C-Mount. Many focal length available |
Operating System | Embedded TOS (Tattile Operating System) |
Digital i/o |
1 Optoisolated input – 1 Relay Outputs – 1 Strobe output – 4 ID input |
Connectors | Waterproof circular connector |
Ethernet | Fast Ethernet 10/100 |
Serial port | Insulated RS485 |
Storage | Up to 32 GB |
Environment, Size, Power | |
Operating & Storage Temperature | From -30° to +55° C |
Operating & Storage Humidity | From 10% to 90% non
condensing |
Dimensions | 144 x 135 x 470 mm (WxHxL) |
Weight | 5 kg |
Protection | Waterproof IP66 |
Power supply voltage | 24 Vdc |
Power consumption | 16 W |
